100M HDMI Extender 4K Over Single Cat6 Cable with EDID

4K HDMI Extender 100M with EDID– Ultimate Solution for Long-Distance HDMI Transmission

Get the best 100M HDMI Extender 4K for seamless, high-resolution video and audio transmission over long distances. Enjoy lag-free 4K performance today!

Experience high-definition, ultra-clear video and audio transmission with the 100M HDMI Extender 4K. This cutting-edge extender enables you to send 4K UHD signals over an impressive 100 meters without any loss in quality. Whether you’re setting up a home theater, a conference room, or a large-scale AV installation, this HDMI extender ensures flawless performance.

• This 4K HDMI Extender uses a single Cat5e or Cat6 (Cat6 is recommended) cable instead of an HDMI cable
  to transmit a definition signal up to 100 meters, which reduces cost. The Extender is designed for long-distance transmission of high-definition signals.

Features:

• Support HDMI 1.4b.
• 100M long distance transmission
• Low power consumption, low temperature and high safety.

Specifications:

• Length of CAT5e/CAT6 cable between Rx and TX: Up to 100 meters
• HDMI input: up to 4K 30Hz
• HDMI output: Up to 4K 30Hz
• Max bandwidth: 340MHz
• Max baud rate: 3.4x3Gbps
• Input video signal: 0.5 ~ 1.5 Volt pp
• Output DDC signal: 5Volts pp (TTL)
• HDMI Cable Distance Input Distance: ≤ 10m AWG26 HDMI Standard Cable
• Output HDMI Cable Distance: ≤ 10m AWG26 HDMI Standard Cable
• Power Adapter Size: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC 5V/1A
• Operating temperature range: (-15 to + 55 ℃)
• Operating humidity range: 5 to 90% RH (no condensation)
• Dimensions approx. (L x W x H): 81x47x22 (mm)

Why Choose the 100M HDMI Extender 4K?

1. Seamless Ultra HD 4K Transmission
   Unlike traditional HDMI cables that degrade signal quality over long distances, this 100M HDMI Extender 4K ensures zero-latency, ultra-clear video & audio transmission over Cat6/Cat7 cables.

2. Perfect for Home & Commercial Use
   Whether you need it for gaming setups, home theaters, video conferencing, security systems, or large-scale digital signage, this HDMI extender guarantees optimal performance.

3. Wide Compatibility & Plug-and-Play
   No additional software or drivers are required. Simply connect and play with any HDMI device, including TVs, projectors, gaming consoles, and set-top boxes.

4. Cost-Effective & Durable
   Instead of investing in expensive fiber optic HDMI solutions, this extender uses affordable Ethernet cables while delivering the same high-quality results.

Package included:

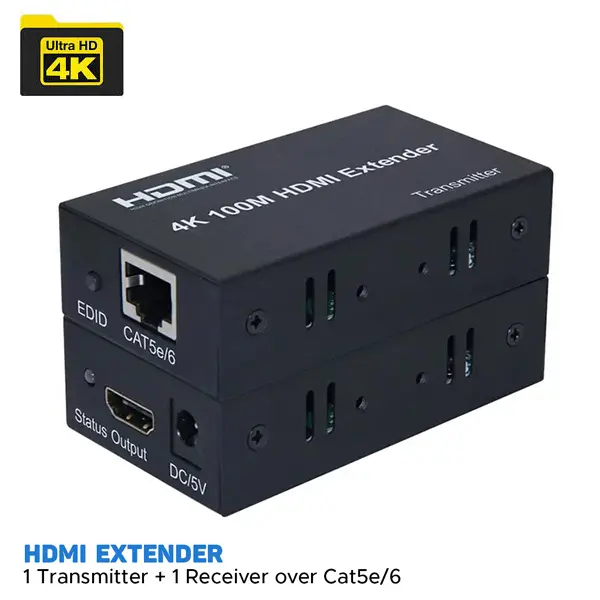

1x4K 100M HDMI Transmitter

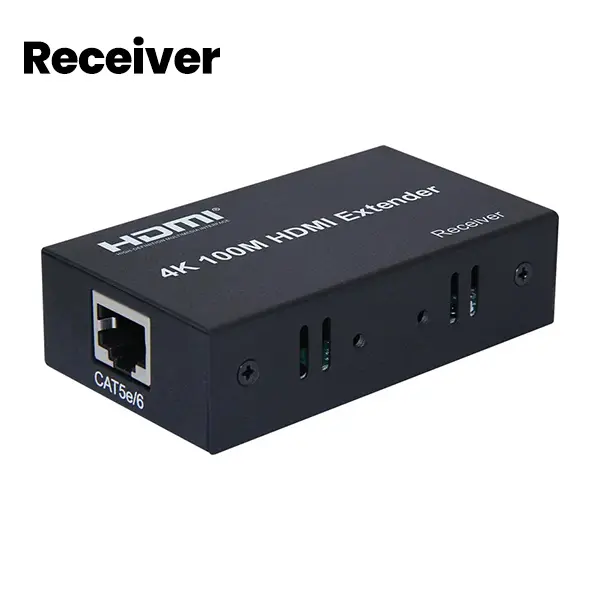

1x4K 100M HDMI Receiver
2 x Power adapter 5V/1A
